Extractors: the Core Intrusive Concept

CSD provides several intrusive containers (lists, hash tables (TODO: link)) and an intrusive smart pointer (TODO: link). To insert an item into an intrusive container, or to use the intrusive smart pointer, a class must provide storage for the intrusive library code to store its internal data. For example, an item inserted into an intrusive list must provide storage for a pointer to the next item.

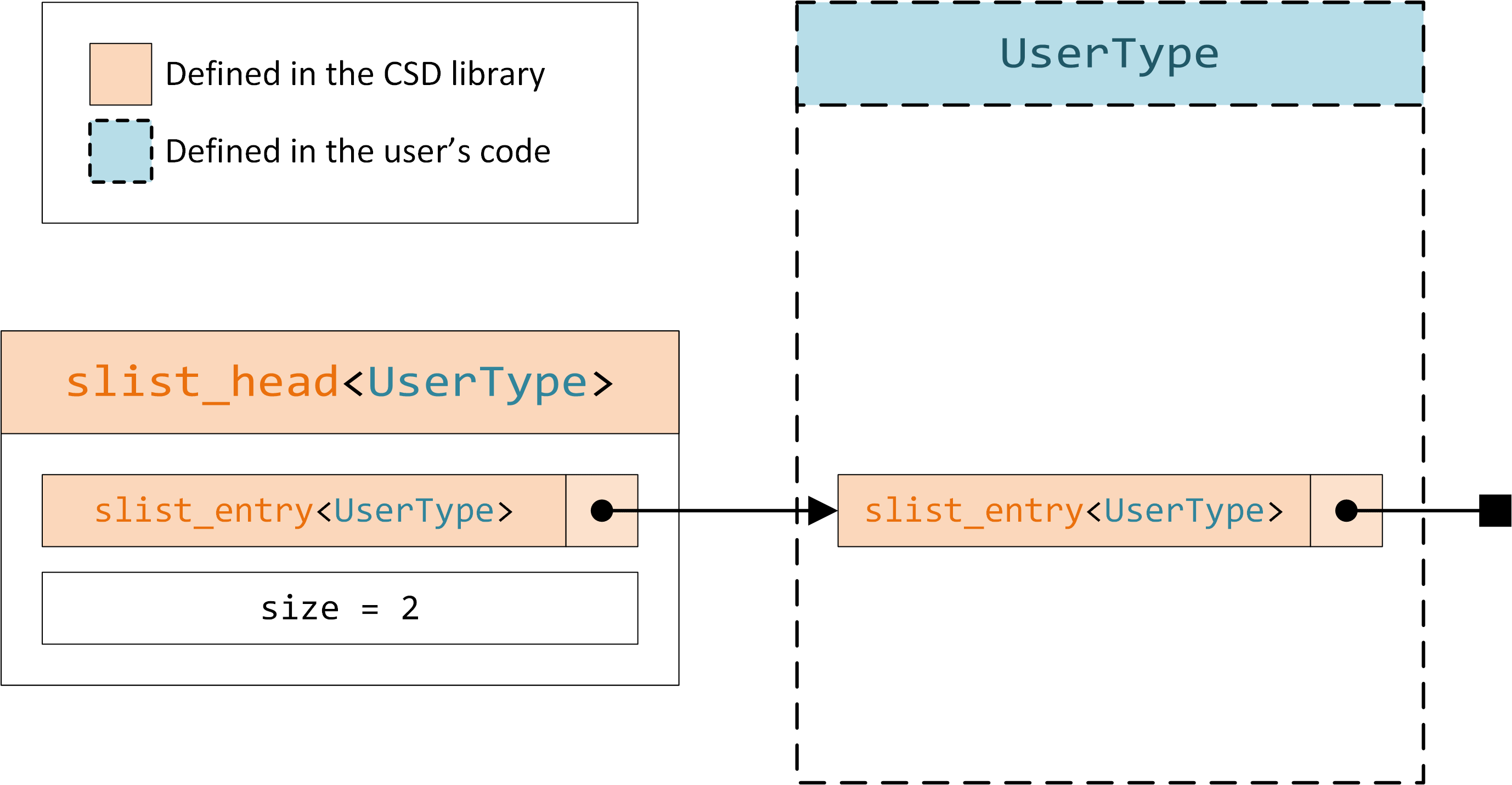

CSD intrusive objects must be embedded into user objects — A typical CSD intrusive data structure; the user must embed a CSD object (in this case, `slist_entry`) into their own code, for the library to use. *Extractors* are the concept that enable CSD to find the embedded object.

How does the intrusive library code – located in CSD – know how to find the storage inside the user’s type, defined in the user’s own code? CSD uses two approaches: a more generic approach is used by the containers, and a simpler one is used by the reference-counted smart pointer. In both cases, extractors are the fundamental concept. At the source-code level, an “extractor” is just a tiny C++ concept similar to std::invocable but with an additional guarantee that the result can bind to a particular reference type:

template <typename F, typename R, typename T>
concept extractor = std::invocable<F, T&> &&
    std::common_reference_with<std::invoke_result_t<F, T&>,
                               std::add_lvalue_reference_t<R>>;

Despite this simplicity, usage of csg::extractor in code is meant to convey a deeper semantic meaning that is explained in the rest of this section.

Extractor basics

As shown in the picture above, intrusive containers are just small “head” objects containing links to the container items. The head object is always a template, and one of the template parameters is an std::invocable type, which knows how to extract the intrusive payload from the user’s type.

Consider the case of a singly-linked list:

#include <csg/core/slist.h>

struct ListItem {
  int i;                            // List item's data
  csg::slist_entry<ListItem> link;  // Intrusive link that makes us part of
                                    // a `ListItem` singly-linked list
};

// Define a functor which knows how to extract the link member
// from the `ListItem` type.
struct GetLink {
  csg::slist_entry<ListItem> &operator()(const ListItem &i) const noexcept {
    return i.link;
  }
};

using list_t = csg::slist_head<ListItem, GetLink>;

Throughout the CSD documentation, an invocable like GetLink is referred to as an extractor, a term borrowed from the Boost Multi-index library.

In the case of the containers, it is typically called an “entry extractor,” because the object it extracts has “_entry” in the name. For example, the GetLink above extracts a csg::slist_entry<ListItem>. The term “entry” comes from the original queue(3) C intrusive library from BSD; it is the object that stores the pointers used to link an object into a list, thereby making it an entry in that list.

It is both annoying and unnecessary to write a boilerplate functor like GetLink. Because a pointer-to-data-member can be used with std::invoke, we would ideally like to write something like this:

using list_t = csg::slist_head<ListItem, &ListItem::link>;

Unforutantely we cannot do this directly.

In C++, a template parameter must be either a type parameter, or a non-type parameter (i.e., a compile-time value). To make the library as generic as possible, the extractor parameter of csg::slist_head is a type, whereas &ListItem::link is a constexpr value.

To deal with this, a helper template called invocable_constant is used to wrap a constexpr invocable in a function-like type:

template <auto I>
struct invocable_constant {
  constexpr static auto value = I;

  template <typename... Ts> requires std::invocable<decltype(I), Ts...>
  constexpr decltype(auto) operator()(Ts &&... vs) const noexcept(/*details*/) {
    return std::invoke(I, std::forward<Ts>(vs)...);
  }
};

The name invocable_constant is similar to the standard library classes, integral_constant and bool_constant, which wrap constexpr values into types, so they can be used as template type arguments.

Now we can define list_t as:

using list_t = csg::slist_head<ListItem, invocable_constant<&ListItem::link>>;

Because this pattern is common – and because the above is still too verbose – a helper type alias is defined:

using list_t = csg::slist_head_cinvoke_t<&ListItem::link>;

Each container type defines a similar type alias, always ending in “_cinvoke_t”, to help the user refer to a constexpr invokeable type that wraps a constexpr value like the pointer-to-member above.

Although the user can provide any std::invocable type (including a stateful one), most of the time the user will want a member object pointer, a member function pointer, or a free function taking a single T& argument (see the documentation of std::invoke for the possibilities). Because references to particular free functions or members are compile-time constants, the “_cinvoke_t” helpers are the most common way to declare a container type in CSD.

`offsetof`-based Extractors

Another important class of extractors are the offset extractors: they extract an intrusive payload using the offsetof macro and std::bit_cast. They are specializations of the template functor offset_extractor:

template <typename R, std::size_t Offset>
struct offset_extractor {
  constexpr static std::size_t offset = Offset;

  template <typename T>
  constexpr std::remove_cvref_t<R> &operator()(T &t) const noexcept {
    constexpr auto *const baseAddr = std::bit_cast<std::byte *>(std::addressof(t));
    return *std::bit_cast<R *>(baseAddr + Offset);
  }
};

Like invocable_constant, manual use of offset_extractor is cumbersome. Unfortunately we cannot write a helper alias like slist_head_cinvoke_t that simplifies it, because of limitations in the C++ language.

Instead, we use a helper macro:

using list_t = CSG_SLIST_HEAD_OFFSET_T(ListItem, link);

Each container type defines a similar macro, always ending in “_OFFSET_T”, to help the user work with offset extractors. The extractor type itself can be referred to using the macro CSG_OFFSET_EXTRACTOR(Class, Field). For example, the above definition of list_t is shorthand for:

using list_t = csg::slist_head<ListItem, CSG_OFFSET_EXTRACTOR(ListItem, link)>;

Note

In both the documentation and the code, extractors are referred to as being either “offset extractors” or “invocable extractors.” Yet you may notice that offset_extractor is an invocable type. Why aren’t offset extractors considered “invocable”?

Although offset_extractor is a functor, std::invoke is not used in its primary task of performing extraction. Instead, various helper classes in the implementation have partial template specializations for offset_extractor. These helper classes use a different strategy for offset extractors than for all other extractor types (for details, see the link encoding notes in the implementation notes). This is actually the “secret sause” of offset_extractor that gives it a slight edge during code generation. offset_extractor is modeled as a functor because it simplifies certain other parts of the code.

When to use offset-based extractors

Offset-based extractors are similar to pointer-to-data-member extractors, but they usually generate better code. Unfortunately, not all types can use them. The C++ standard only guarantees that offsetof will work on standard layout types, although since C++17, implementations are free to allow other types. Because of that freedom, CSD does not enforce the standard layout requirement – so users must “know what they’re doing” when using offsetof.

Pointer-to-member-extractors are more powerful, and can solve two problems:

Access Protection Problems – In most C++ compilers, an offsetof(T, <field>) appearing outside of T and where <field> is non-public will fail, unless a friend declaration allows access in the scope where offsetof appears. This can be fixed by adding a public “getter” method and using that as the extractor, e.g.
```
class ListItem {
public:
  slist_entry<ListItem> &getLink() noexcept { return m_link; }

private:
  int i;
  slist_entry<ListItem> m_link;
};

using list_t = slist_head_cinvoke_t<&ListItem::getLink>;
```
Self-Referential List Heads – The expression offsetof(C, <member-of-C>) is usually invalid when it appears inside the definition of class C. For example, this will not work:
```
class C {
  slist_entry<C> link;
  CSG_SLIST_HEAD_OFFSET_T(C, link) children; // Error: C isn't a complete type
};
```
As far as the author is aware, there is nothing in the C standard that says this cannot work, but none of the popular implementations permit offsetof inside a type that is still being defined. However, using a pointer-to-member-based extractor will work, even before the type is complete:
```
class C {
  slist_entry<C> link;
  slist_head_cinvoke_t<&C::link> children; // OK
};
```
This may seem like an odd use case, but there are several “tree-like” structures like this in the FreeBSD kernel. As one example, a vm_object contains a LIST_HEAD to its shadow vm_object children, as part of the virtual memory copy-on-write feature. There is still one restriction: the expression &C::link must appear after the csg::slist_entry_link<C> member. If the user does not want to do this, the proxy pattern can be used instead.

Both offset-based and invocable_constant extractors are stateless, and use no storage in the head object (thanks to a [[no_unique_address]] attribute). However, the user is free to use a stateful functor which can perform arbitrarily complex link access.
